Mechanical Engineering National Institute of Technology Srinagar

List of Equipments in Production Engineering Laboratory

• 1. Lathe Machine
• 2. CNC Lathe Machine
• 3. CNC Milling Machine
• 4. Bench Drilling Machine
• 5. Bench Grinding Machine
• 6. Surface Grinding Machine
• 7. Shaper Machine
• 8. Power Hacksaw

Manufacturing Technology Lab (MEC 305P) (Odd Semester)

Course Outcomes

• CO1: Describe the geometry of single point cutting tool.
• CO2: Apply knowledge of metal cutting to perform various machining operations
• CO3: Explain the working and use of various components of conventional machine tools.
• CO4: Identify the sequence of operation to process a job.

List of Experiments

• 1. To study the construction details and working principle of Lathe Machine.
• 2. To perform Taper Turning using Lathe Machine
• 3. To perform Step Turning using Lathe Machine
• 4. To Study the Tool Geometry of a Single Point Cutting Tool.
• 5. To perform drilling operation on a given workpiece using Drilling Machine
• 6. To perform shaping operation on a given workpiece using shaper machine

CAM & Industrial Automation Lab (MEC 405P) (Even Semester)

Course Outcomes

• CO1: Explain the working and use of various components of CNC machines
• CO2: Identify the sequence of codes to process a job
• CO3: Create CNC program for turning and milling operations.
• CO4: Produce different profiles on the surface of a given material.

List of Experiments

• 1. To study the fundamental of CNC Machine
• 2. To study the different codes used in CNC machine
• 3. To perform drilling operation on CNC-Milling Machine
• 4. To perform Slotting operation on CNC-Milling Machine
• 5. To perform Turning operation on CNC-Lathe Machine
• 6. To perform Milling Operation to produce name initial on CNC Milling Machine

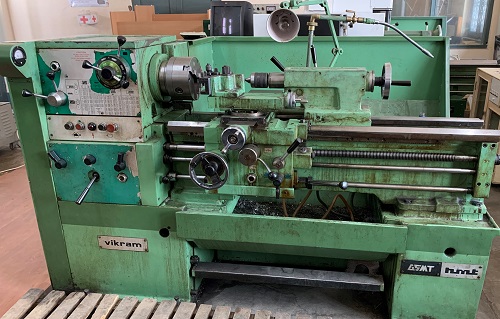

Lathe Machine (HMT)

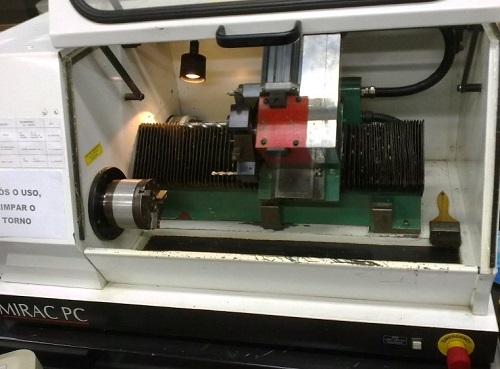

CNC Lathe Machine (Denford)

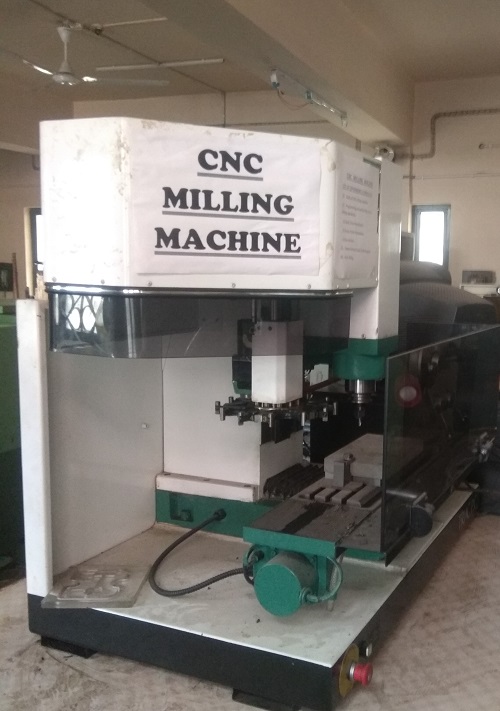

CNC Milling Machine (Denford)
